With the lights down low...

[Clancy]

Gentlemen,

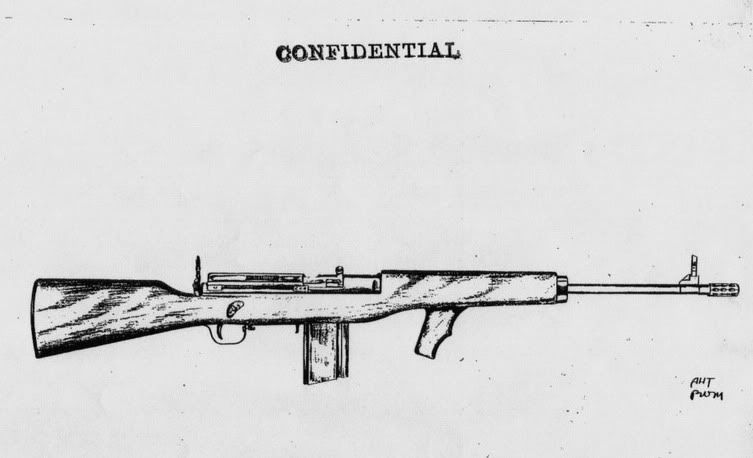

..and the shades were pulled down low at SA. Mr. Garand and others were working on this...... Their aim was set for a full auto rifle. This file has very little info with it.
Have some fun and check it out, notice mag, flash hider. Let me know what you think.





Thanks again for taking the time and effort to look at this data.
Clancy
ps could use some hits
NRA Life Endowment
NRA Training Counselor
NRA Instructor
FSS 90% / BW X Speed Div by 1000 = PF

[RaceDay]

Interesting sights. I'm not sure why the rear sight is way back and apparently off the receiver.

[Mssr. Eleganté]

It looks like they'd already figured out the rifle would need an in-line straight stock to deal with full auto recoil, but hadn't figured out where to put the pistol grip yet.

And that rear sight looks like a Marble's tang peep sight.

[M. Sage]

Looks a bit like an SKS in the receiver area. Also looks like (and probably is) a BAR mag.

The sight is at the rear because Euro-style sights (rear sight on the back of the barrel) suck compared to putting the rear sight on or near the back of the receiver.

I love the straight stock.

[4 Brigada]

looks like a lot of guns, G43, AG42, FN49. Any ideas on the system operation principal?

[Boomer1961]

I think someone has been playing with his photoshop again!

[Clancy]

Gentlemen,
That's right out of the US National Archives, or SA or maybe APG or....

"OPEN IN THE NAME OF THE REPUBLIC AND THE CONINENTAL CONGRESS!!!"
ED Clancy
