A2 Front Sight Cut

[LBDamned]

20" PSA Upper intended to have stationary scope... sharing lower with carbine that has BUIS (so the A2 sight gets the chop)...

Initially I just wanted to chop it quickly and install free float rail... with 15" Troy Alpha rail in hand, I went at it...

Everything was done with Dremel, while barrel was mounted... and basic tools that we all use... no bench, no vise - no intent for pretty... this was my first one - and in hind-sight, it wouldn't take much more time or effort to make it look cleaner - but I'm happy with the results...

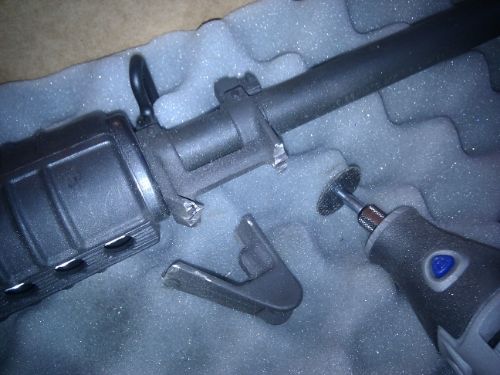

Step 1) Chop the A2 sight (note to self - cut much lower than you think - saves lots of grinding later):

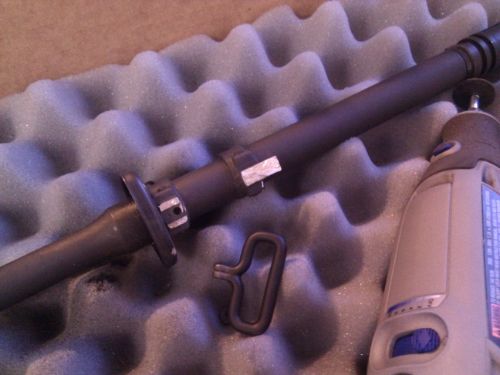

Step 2) Chop bayonet lug and sling mount (by this time I realized note to self above - but still could have gone lower):

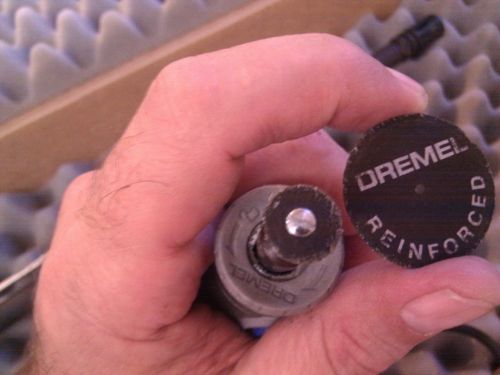

I won't bore you with all the progress - but two full cutting wheels were used (would have been one, considering note to self in step 1 & 2):

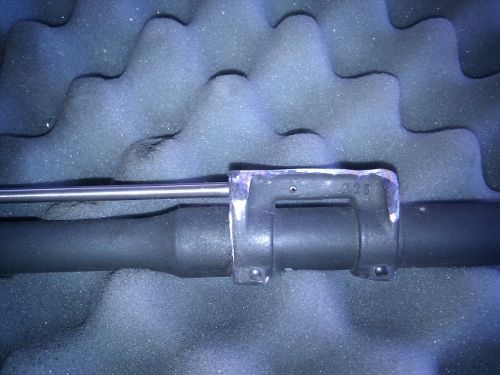

After a bit of grinding and profiling - to fit under Troy rail (lower than anticipated):

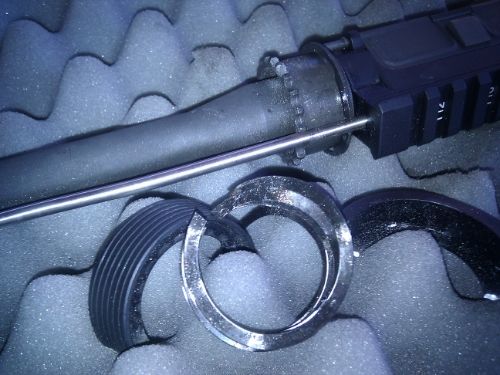

Cut the Delta Ring and tank the coil:

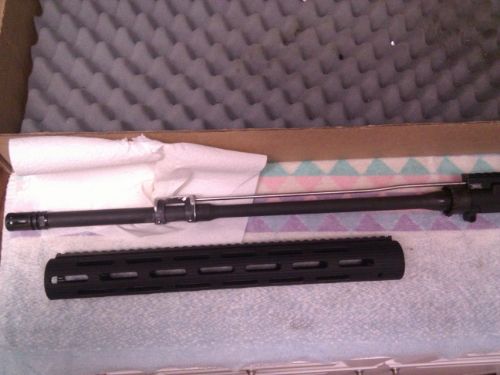

After a few fit-mounts, and a bit more grinding (clearing interior plate for bipod and sling mount rail)... it's gonna fit - Yay

[LBDamned]

so everything I've read says use BBQ paint (high temp)... previous car mods had a can of SEM "Trim Black" sitting in the closet... here it goes...


Not the prettiest - but I'm satisfied:


Clears the Troy Alpha Rail (which is pretty low profile) - I like the feel of this rail and love the new mount system they use:


Now I go from this:


To this... in seconds:


And for those screaming about featureless and flash hinder... it has the same Spies Dynacomp... actually, this is just an obligatory pic of the stealthiness


I realize it's not the first... but it's only a few hours and minimal tools... and if you pay attention to my "notes to self", it will save at least an hour... if I can do it, anyone can

*I'll follow-up in a few weeks to see if the Trim Black paint holds up to heat...
