Can anybody tell me what model of smaith and wesson

[skyline]

Hello went over to a family member house and they had a smith and wesson revolver but I don't know anything about it Caliber or model I was hoping to be able to find the replacement handels

Sent from my SM-S908U using Tapatalk

[freonr22]

Any stampings inside the crane? Or cylinder?

[P5Ret]

Looks to be a model 3. Grips are not going to be the only thing that needs to be replaced, main spring is also missing. They were discontinued around 1915.

They came in several different calibers, not many of them are in mass production these days. Before I did anything with it I'd have it gone over by a very competent gunsmith

[Dan_Eastvale]

Looks to be a model 3. Grips are not going to be the only thing that needs to be replaced, main spring is also missing. They were discontinued around 1915.

They came in several different calibers, not many of them are in mass production these days. Before I did anything with it I'd have it gone over by a very competent gunsmith

Was it refinished? No chrome back then?

[Robotron2k84]

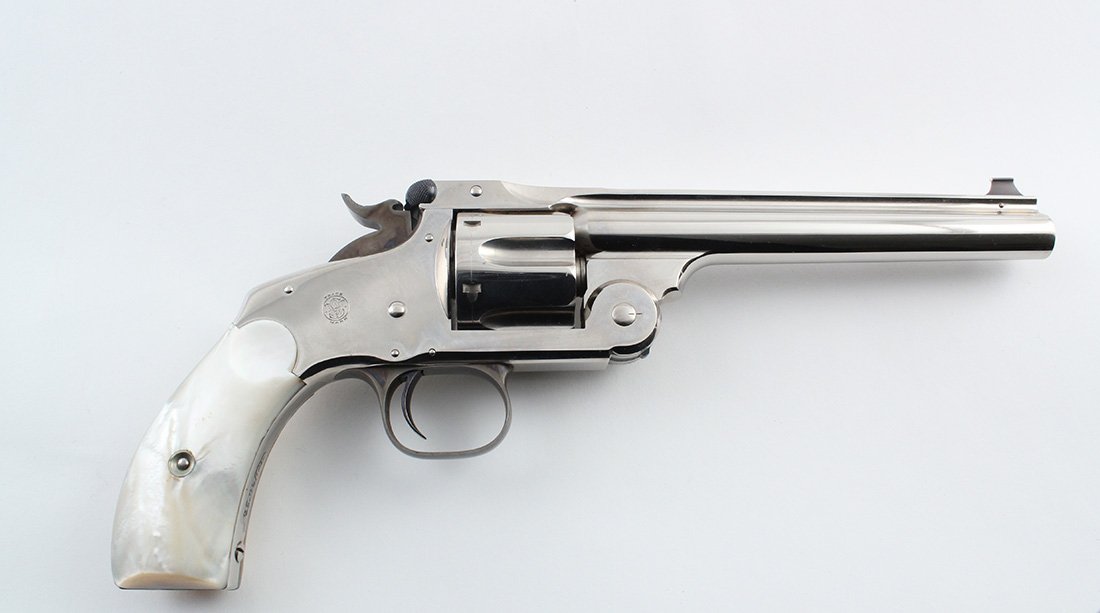

New model 3, nickel finish, .38 Winchester?

Just a guess. These guns go for 3-4K at auction, in 80% or better condition. The finish on yours looks great. Time to acquire a poor condition donor for parts.

Edit: Correct model is below…

.

[The Gleam]

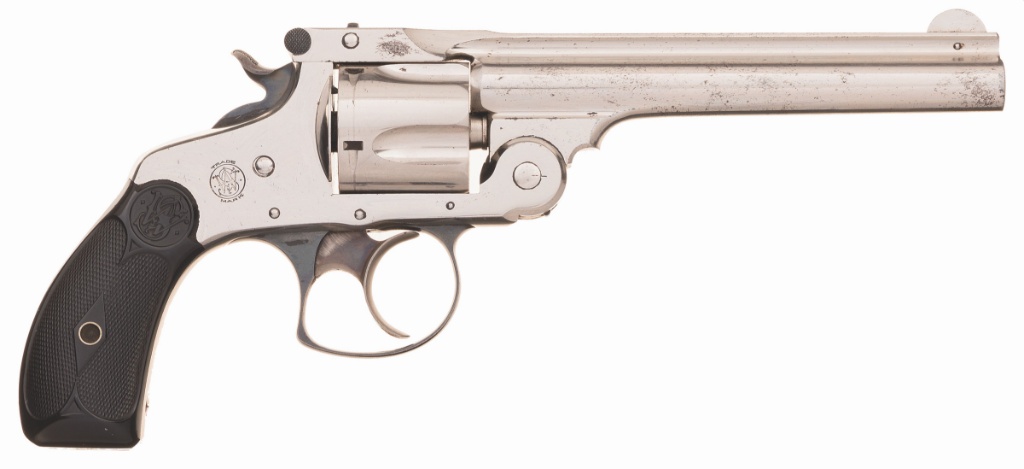

Judging solely by the front face of the cylinder being ahead of the forward lower pin in the frame (as .38) and the S&W monogram on the right side of the frame that earlier models did not have, I'm thinking .38-S&W Double Action 4th Model Revolver, 5-inch barrel, made from 1895 to 1909 - refinished at some point as the hammer, trigger-guard and trigger should be blued - (or are those in the white/finish gone?)

https://www.rockislandauction.com/de...revolver-38-sw

https://www.proxibid.com/Firearms-Mi...ation/53208749

----

[The Gleam]

New model 3, nickel finish, .38 Winchester?

Just a guess. These guns go for 3-4K at auction, in 80% or better condition. The finish on yours looks great. Time to acquire a poor condition donor for parts.

Not a new model 3; note the inward curvature of the trigger guard and pins in the frame under the cylinder on the 38 Double Action 4th model that the new model 3 doesn't have.

[Robotron2k84]

Trigger-guard on the new model 3 could be customer specified, no? There are examples with two-finger guards, floating around.

I agree and see your point on the trigger-guard pins.

[The Gleam]

Trigger guard on the new model 3 was customer specified, was it not? There are examples with two-finger guards, floating around.

That's not the only reason of note. Frames are entirely different, pin placement, top latch different, etc.

It's the .38-S&W Double Action 4th Model Revolver.

(Page 58 of Standard Catalog of Smith & Wesson, 2nd Edition, Supica/Nahas.)

---

[Robotron2k84]

Conceded. Sorry about getting hopes up.

[Killer Bee]

SCSW ftw! mine is at home so I'll leave this one up to y'all

[skyline]

Thank you all for your great information
I knew I would get a answer here I wonder if some one knows if I can get custome grips made or of some one that makes custom grips also any recommendations on a good gunsmith in the Los Angeles/orange county area

Sent from my SM-S908U using Tapatalk
